朝阳4NIC-K系列开关电源是朝阳4NIC品牌销量第一的开关电源产品，价格相对于其他几种系列的开关电源的价格有优势，并且满足朝阳电源开关电源一直以来的技术优势，六面金属屏蔽外壳，低噪声。
特长：
低噪声，工作频率：25KHZ~500KHZ
集成芯片控制可靠性高，低压差电路设计功耗小，设计裕量大。
大功率电源IPM模块保护完善，满足全球AC输入标准。
典型应用：
数字电路，工业仪表，交通运输
通讯设备，科研实验。
工作环境温度：
商业级：0度~50度
工业级：-25度~50度
自然/隧道风冷散热
可实现功能：
过流保护，短路保护，过热保护，过压保护

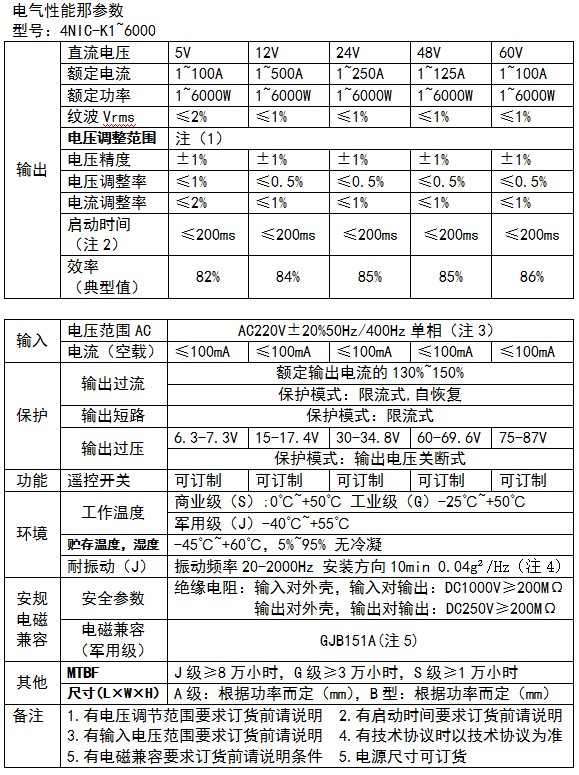

电参数：
效率：最高85%
输入电压：AC110V,220V,380V单相或三相
频率：50HZ/400HZ
输出电压：DC0~300V任选
输出电流：最高可达200A
纹波：VP-P≤1%
K系列开关电源选型指南
输入：AC110V/220/380V单相，单相，50Hz,400Hz任选
型 号 输 出 外形尺寸 价格（S商业，G工业）
4NIC-K2.5 5V0.5A B：100*95*37 S：100 G：200
4NIC-K5 5V1A B:100*95*58 S:160 G:320
4NIC-K10 5V2A B:110*95*58 S:180 G:360
4NIC-K15 5V3A B:140*95*58 S:290 G:580
4NIC-K20 5V4A B:130*120*70 S:340 G:680
4NIC-K25 5V5A B:150*120*70 S:400 G:800
4NIC-K30 5V6A B:160*120*70 S:450 G:900
4NIC-K40 5V8A B:180*120*70 S:500 G:1000
4NIC-K50 5V10A B:160*150*100 S:570 G:1140
4NIC-K60 5V12A B:180*150*100 S:750 G:1500
4NIC-K75 5V15A B:200*150*100 S:940 G:1880
4NIC-K100 5V20A B:220*180*120 S:1180 G:2360
4NIC-K4.5 9V0.5A B:100*95*37 S:130 G:260
4NIC-K9 9V1A B:100*95*58 S:180 G:360
4NIC-K18 9V2A B:130*95*58 S:200 G:400
4NIC-K27 9V3A B:130*120*70 S:310 G:620
4NIC-K36 9V4A B:140*120*70 S:370 G:740
4NIC-K45 9V5A B:160*120*70 S:440 G:880
4NIC-K54 9V6A B:180*120*70 S:480 G:960
4NIC-K72 9V8A B:200*120*70 S:530 G:1060
4NIC-K90 9V10A B:180*150*100 S:610 G:1220
4NIC-K108 9V12A B:200*150*100 S:810 G:1620
4NIC-K135 9V15A B:220*150*100 S:990 G:1980
4NIC-K180 9V20A B:220*180*120 S:1320 G:2640
4NIC-K6 12V0.5A B:100*95*58 S:150 G:300
4NIC-K12 12V1A B:110*95*58 S:200 G:400
4NIC-K24 12V2A B:130*95*58 S:240 G:480
4NIC-K36 12V3A B:130*120*70 S:330 G:660
4NIC-K48 12V4A B:150*120*70 S:390 G:780
4NIC-K60 12V5A B:190*100*70 S:460 G:920
4NIC-K72 12V6A B:180*120*70 S:500 G:1000
4NIC-K96 12V8A B:160*150*100 S:550 G:1100
4NIC-K120 12V10A B:180*150*100 S:630 G:1260
4NIC-K144 12V12A B:200*150*100 S:830 G:1660
4NIC-K180 12V15A B:240*150*100 S:1020 G:2040
4NIC-K240 12V20A B:240*180*120 S:1370 G:2740
4NIC-K7.5 15V0.5A B:100*95*58 S:170 G:340
4NIC-K15 15V1A B:130*95*58 S:220 G:440
4NIC-K30 15V2A B:120*120*70 S:260 G:520
4NIC-K45 15V3A B:140*120*70 S:340 G:680
4NIC-K60 15V4A B:160*120*70 S:410 G:820
4NIC-K75 15V5A B:180*120*70 S:480 G:960
4NIC-K90 15V6A B:200*120*70 S:530 G:1060.
4NIC-K120 15V8A B:170*150*100 S:600 G:1200
4NIC-K150 15V10A B:200*150*100 S:700 G:1400
4NIC-K180 15V12A B:220*150*100 S:860 G:1720
4NIC-K255 15V15A B:260*150*100 S:1040 G:2080
4NIC-K300 15V20A B:260*180*120 S:1480 G:2960
4NIC-K10 20V0.5A B:110*95*58 S:180 G:360
4NIC-K20 20V1A B:130*95*58 S:260 G:520
4NIC-K40 20V2A B:120*120*70 S:290 G:580
4NIC-K60 20V3A B:150*120*70 S:380 G:760
4NIC-K80 20V4A B:180*120*70 S:440 G:880
4NIC-K100 20V5A B:150*150*100 S:550 G:1100
4NIC-K120 20V6A B:160*150*100 S:620 G:1240
4NIC-K160 20V8A B:200*150*100 S:700 G:1400
4NIC-K200 20V10A B:220*150*100 S:810 G:1620
4NIC-K240 20V12A B:240*150*100 S:910 G:1820
4NIC-K300 20V15A B:260*180*120 S:1280 G:2560
4NIC-K400 20V20A B:280*230*156 S:1700 G:3400
4NIC-K12 24V0.5A B:110*95*58 S:200 G:400
4NIC-K24 24V1A B:130*95*58 S280 G:560
4NIC-K48 24V2A B:120*120*70 S:310 G:620
4NIC-K72 24V3A B:160*120*70 S:460 G:920
4NIC-K96 24V4A B:150*150*100 S:550 G:1100
4NIC-K120 24V5A B:160*150*100 S:600 G:1200
4NIC-K144 24V6A B:180*150*100 S:690 G:1380
4NIC-K192 24V8A B:220*150*100 S:760 G:1520
4NIC-K240 24V10A B:240*150*100 S:940 G:1880
4NIC-K288 24V12A B:240*180*100 S:1100 G:2200
4NIC-K360 24V15A B:260*180*120 S:1400 G:2800
4NIC-K480 24V20A B:300*230*156 S:1890 G:3780
4NIC-K600 24V25A B:320*230*156 S:2100 G:4200
4NIC-K720F 24V30A B:380*240*155 S:2720 G:5440
4NIC-K13.5 27V0.5A B:120*95*58 S:220 G:440
4NIC-K27 27V1A B:120*120*70 S:300 G:600
4NIC-K54 27V2A B:150*120*70 S:340 G:680
4NIC-K81 27V3A B:180*120*70 S:520 G:1040
4NIC-K108 27V4A B:160*150*100 S:620 G:1220
4NIC-K135 27V5A B:170*150*100 S:670 G:1340
4NIC-K162 27V6A B:190*150*100 S:710 G:1420
4NIC-K216 27V8A B:240*150*100 S:860 G:1720
4NIC-K270 27V10A B:230*160*120 S:1000 G:2000
4NIC-K324 27V12A B:260*180*120 S:1300 G:2600
4NIC-K405 27V15A B:280*180*120 S:1600 G:3200
4NIC-K30 30V1A B:120*120*70 S:320 G:640
4NIC-K60 30V2A B:150*120*70 S:380 G:760
4NIC-K90 30V3A B:150*150*100 S:540 G:1080
4NIC-K120 30V4A B:170*150*100 S:650 G:1300
4NIC-K150 30V5A B:200*150*100 S:710 G:1420
4NIC-K180 30V6A B:220*150*100 S:800 G:1600
4NIC-K240 30V8A B:240*150*100 S:900 G:1800
4NIC-K300 30V10A B:260*180*120 S:1200 G:2400
4NIC-K18 36V0.5A B:140*95*58 S:360 G:720
4NIC-K36 36V1A B:140*120*70 S:460 G:920
4NIC-K72 36V2A B:180*120*70 S:500 G:1000
4NIC-K108 36V3A B:170*130*100 S:650 G:1300
4NIC-K144 36V4A B:200*150*100 S:710 G:1420
4NIC-K180 36V5A B:240*150*100 S:880 G:1760
4NIC-K216 36V6A B:260*150*100 S:970 G:1940
4NIC-K288 36V8A B:240*180*120 S:1090 G:2180
4NIC-K360 36V10A B:260*180*120 S:1400 G:2800
4NIC-K720F 36V20A B:320*240*155 S:2500 G:5000
4NIC-K24 48V0.5A B:120*120*70 S:480 G:960
4NIC-K48 48V1A B:150*120*70 S:540 G:1080
4NIC-K96 48V2A B:150*150*100 S:660 G:1320
4NIC-K144 48V3A B:180*150*100 S:900 G:1800
4NIC-K192 48V4A B:230*150*100 S:1200 G:2400
4NIC-K240 48V5A B:240*150*100 S:1600 G:3200
4NIC-K288 48V6A B:240*180*120 S:1800 G:3600
4NIC-K384 48V8A B:280*180*120 S:2000 G:4000
4NIC-K480 48V10A B:300*230*156 S:2300 G:4600
4NIC-K30 60V0.5A B:120*120*70 S:520 G:1040
4NIC-K60 60V1A B:170*120*70 S:660 G:1320
4NIC-K120 60V2A B:180*150*100 S:800 G:1600
4NIC-K180 60V3A B:220*150*100 S:1180 G:2360
4NIC-K240 60V4A B:240*150*100 S:1400 G:2800
4NIC-K300 60V5A B:260*180*120 S:1700 G:3400
60V5A以上者请查看4NIC-Q系列开关电源，400HZ单相输入价格提高10%，三相输入价格提高50%，体积需要增加，请来电询问。
型号后加字母F的，为加风机.
此价格表中的输出电压电流可任意组合，或根据客户要求订制。欢迎来电垂询
15618518888 李项羽
